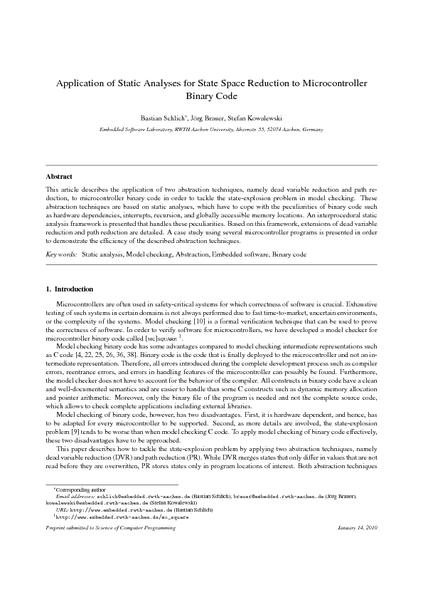

Application of Static Analyses for State Space Reduction to Microcontroller Binary Code
This article describes the application of two abstraction techniques, namely dead variable reduction and path reduction, to microcontroller binary code in order to tackle the state-explosion problem in model checking. These abstraction techniques are based on static analyses, which have to cope with the peculiarities of binary code such as hardware dependencies, interrupts, recursion, and globally accessible memory locations. An interprocedural static analysis framework is presented that handles these peculiarities. Based on this framework, extensions of dead variable reduction and path reduction are detailed. A case study using several microcontroller programs is presented in order to demonstrate the efficiency of the described abstraction techniques.
Bastian Schlich, Jörg Brauer and Stefan Kowalewski
